Directional Drone Jammer Man portable defense system Hand held drone detection and jamming equipment DR3002
1, Product Introduction
The handheld unmanned aerial vehicle (UAV) detection and countermeasure device is a comprehensive UAV single-operator countermeasure system that integrates detection warning, target tracking, interference and attack, and display and control networking functions. It operates on the principle of emitting high-intensity electromagnetic waves as a countermeasure, targeting the flight control systems and satellite positioning receivers of various small to medium-sized civilian drones. This professional control device renders them ineffective by disrupting normal communication signals.
The device includes eight frequency bands for disrupting flight control and satellite positioning, covering frequencies for flight control interference as well as GPS/QZSS/GLONASS/Galileo and BeiDou II satellite positioning. Through proper operation, the controlled UAV can be made to lose control, return, be displaced, forced to land, or even crash.
Designed for portability, the device features a robust body made from high-strength aviation aluminum CNC machining, highly integrated microwave circuitry, and a compact antenna design. It boasts a sturdy structure, effective heat dissipation, convenient portability, and long-range control capabilities. The device is powered by a rechargeable polymer battery pack, providing strong endurance. Utilizing a DSSS/FHSS dual-mode digital jammer, the device incorporates solid-state microwave integrated circuit (MMIC) technology and high-density surface-mount technology (SMT), ensuring high reliability and normal operation in harsh cold and hot environments.
The DR300-1 has significantly enhanced its defense capabilities against the challenging FPV issues through extensive improvements in the DDS module and algorithm tuning. This has enabled the device to operate with low energy consumption, extended standby duration, and multi-frequency jamming coverage. Its effectiveness has been well-verified through extensive practical applications.
2,Functional highlight
Designed for portability, the device features a robust body made from high-strength aviation aluminum CNC machining, highly integrated microwave circuitry, and a compact antenna design. It boasts a sturdy structure, effective heat dissipation, convenient portability, and long-range control capabilities. The device is powered by a rechargeable polymer battery pack, providing strong endurance.Utilizing a DSSS/FHSS dual-mode digital jammer, the device incorporates solid-state microwave integrated circuit (MMIC) technology and high-density surface-mount technology (SMT), ensuring high reliability and normal operation in harsh cold and hot environments.
① Detection and Countermeasure Range: Detection range is far-reaching, ≥2km
② Long Endurance: Equipped with a high-capacity battery, standby time exceeds 24 hours
③ Strong Expansion Capability: Equipped with a rail system for mounting various accessories (optical sights)
④ Comprehensive Coverage of Models: With multiple detection and countermeasure frequencies, it covers all types of models
⑤ Strong Environmental Adaptability: Capable of adapting to complex environments such as high temperatures, high cold, and high altitudes
⑥ Racing Drone Interference: Stands out in countering racing drones

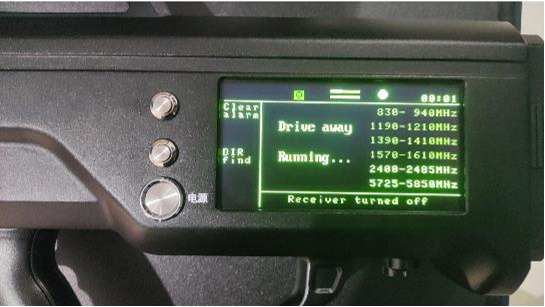

⑦ Easy Operation: Large screen, simple operation, ready to use immediately, no external devices required
3,Specification
| DR300-2 Specification (● yes, ○ no) |
| Color | Black | ● | |
| Detection bands | 400-1500MHz,2200-2500MHz,5100-5900MHz | ● | |
| Detection range | ≥2km(depending on conditions) | ● | |
| Detection response time | <2s | ● | |
| Countermeasure bands | 800 MHz,900MHz,1.2GHz,1.5GHz,2.4GHz,5.2GHz,5.8GHz | ● | |
| Expandable bands | 433MHz,700MHz,1.4 GHzetc. | ● | |
| Countermeasure range | ≥2km (depending on conditions) | ● | |
| Standby time | ≥24h | ● | |
| Operating temperature | -40℃-+60℃ | ○ | -10℃-+50℃ |
| Networking methods | SIM card, eSIM | ● | |
| Alarm methods | Sound and indicator light | ● | |
| Battery | Built-in low-temperature resistant battery, standard with 2 units | ● | |
| Weight | <7kg(including battery) | ● | |
| Dimensions | 770mm80mm284mm(LWH) | ● | |
| Material of casing | CNC machining an aluminum alloy material casing | ○ | Engineering Plastic |
| Display | LCD screen for viewing device status | ● | |
4, After-Sales service
Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.
5, Ccmpany profile
5, Certification Certificate
